VEECO WYKO NT9100 Optical Profilometer

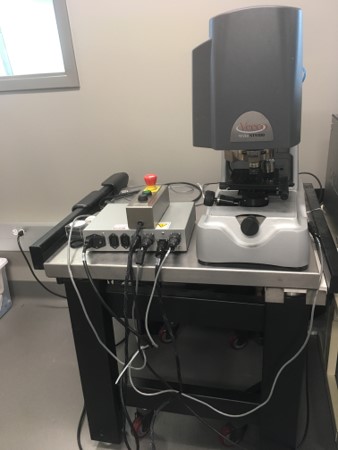

VeecoProfilometer

The VEECO WYKO NT9100 Optical Profilometer is an optical profiler that can map surface contours without any contact through optical techniques. It is ideal for soft materials where a stylus-based surface profilometer can damage the structure being analyzed.

Measurement capability: Non-contact three-dimensional topography and film thickness

Light Source: Green and white LEDs

Vertical measurement range: 0.1 nm to 10 mm

Vertical Resolution: <0.1 nm

RMS Repeatability: 0.05 nm

Vertical Scan Speed: up to 24μm/sec

Lateral Spatial Sampling: 0.1 to 13.2 μm

Please use the iLab system to schedule time to use this equipment.

VEECO WYKO NT9100 Standard Operating Procedure

NT9100 Brochure
